AXE-PROCABLE18x2.5

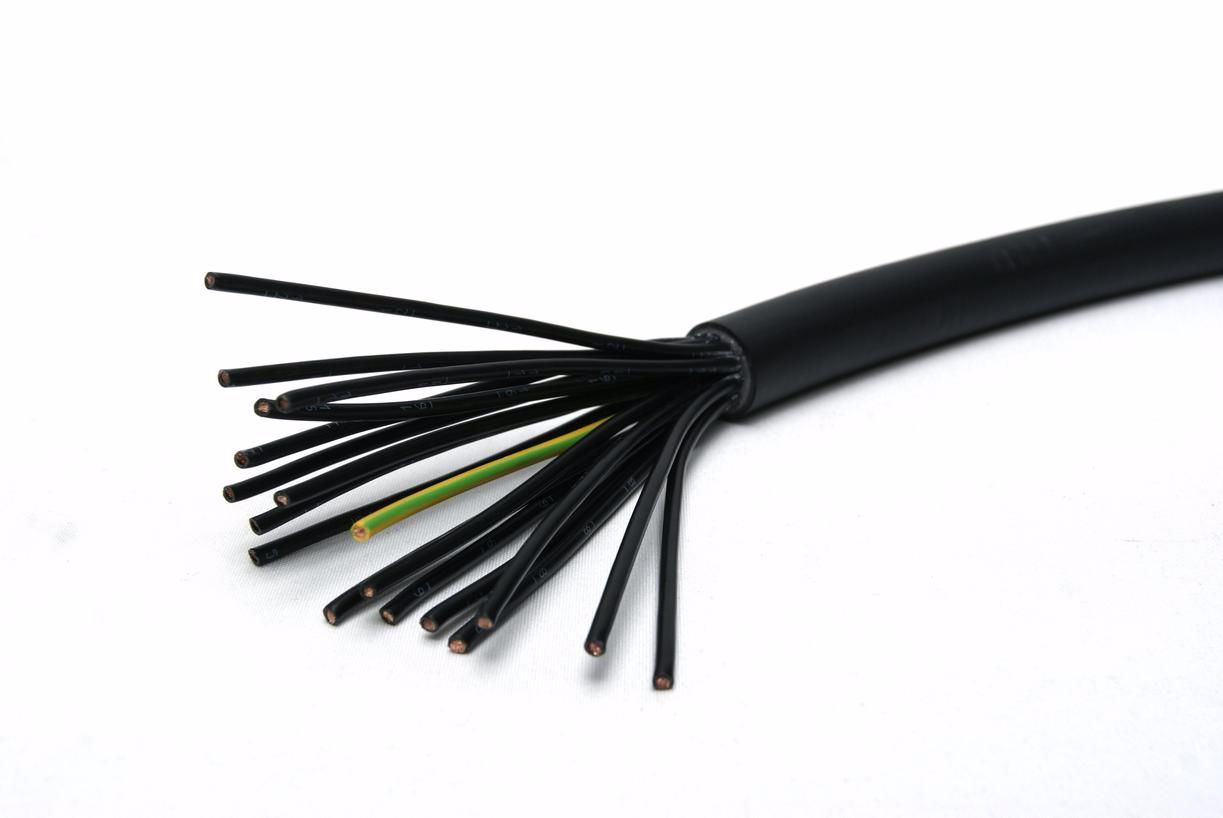

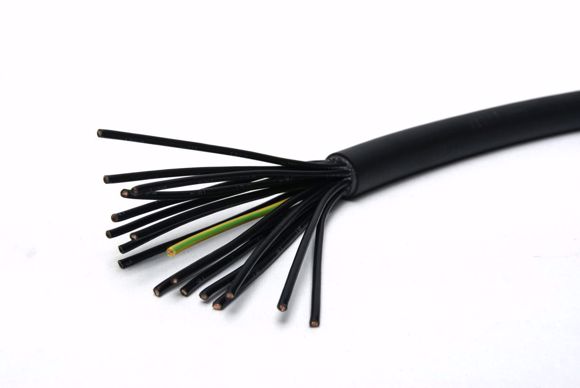

Procable softflex 18x2,5mm² black

Type: MULTIFLEX-SOFT 18 x 2,5 mm2, black
Nominal voltage: 300/500 V
Conductor: finely wired acc. to VDE 0295
Copper construction: 50 x 0,25 mm
Core insulation: PVC-mixture – shorehardness 90+/- 3
Laying of cores: Centre: PVC filler, 1. lay = 6 cores,
2. lay = 12 cores
Core colours: 17 x black with white numbers+1 green-yellow
Jacket: Soft PVC-mixture, black (RAL 9005)
Shorehardness 65 +/- 3
Presure extrusion, with talc, printing: optional
Outside diameter: approx. 19,4 ± 0,40 mm
Test voltage > 3 kV – at 50 Hz eff. for 1 minute
Insulation resistance: min. 20 MOhm x km at 20°C
Conductor resistance: max. 7,98 Ohm/km at 20°C
Operating voltage: max. 500 V
Temperature rating: static: -30 up to +80 °C
operating: - 5 up to +70 °C
This cable is flame retardant acc. DIN VDE 0482 part 265-2-1



Availability: In stock
Manufacturer: Procable
Products specifications
Color Black
Material Neoprene
Products specifications
Color Black
Material Neoprene
