HAR-09300160301

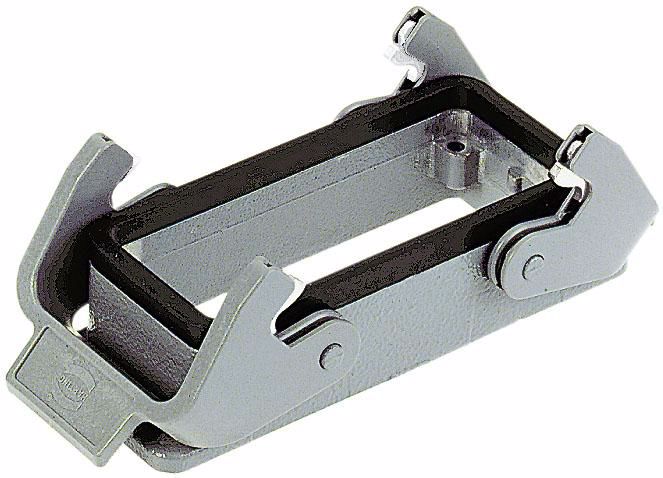

Panel Open 16E/72DD - Grey

Artikelnummer 09 30 016 0301 Beschrijving Han B Base Panel 2 Levers Type sheet PDFPDF Identification Category Hoods/Housings Series of hoods/housings Han® B Type of hood/housing Bulkhead mounted housings Type Low construction Locking type Double locking lever Han-Easy Lock® Yes Version Size 16 B Field of application Standard hoods/housings for industrial connectors Technical characteristics Limiting temperature -40 ... +125 °C Degree of protection acc. to IEC 60529 IP65 Degree of protection acc. to UL 50 12 4 4X Flammability acc. to UL 94 (locking levers) V-0 Material properties Material (hood/housing) Aluminium die-cast Surface (hood/housing) Powder-coated Colour (hood/housing) RAL 7037 (dust grey) Material (seal) NBR Material (locking) Stainless steel Polycarbonate Colour (locking) RAL 7037 (dust grey) Net weight 121.8 g RoHS compliant Specifications and approvals Approvals UL 1977 ECBT2.E235076 CSA-C22.2 No. 182.3 ECBT8.E235076 GL Yes

Declaration of Conformity

Availability: In stock
Manufacturer: Harting
Products specifications
Material Steel
Color Grey
Contacts 16P
Products specifications
Material Steel
Color Grey
Contacts 16P
Customers who bought this item also bought

HAR-09150006104

Contact Silver Male 0,14-0,37mm² HanD/DD

Artikelnummer 09 15 000 6104 Beschrijving Han D MALE CRIMP CONT.0.14-0.3 Type sheet PDFPDF Identification Category Contacts Series Han D® Type of contact Crimp contact Version Gender Male Technical characteristics Conductor cross-section 0.14 ... 0.37 mm² Conductor cross-section AWG 26 ... AWG 22 Operating current ? 10 A Contact resistance ? 3 m? Stripping length 8 mm Material properties Material (contacts) Copper alloy Surface (contacts) Silver plated Net weight 0.71 g RoHS compliant with exemption Specifications and approvals Specifications IEC 61984 EN 60664-1

Declaration of Conformity


HAR-09150006204

Contact Silver Female 0,14-0,37mm² HanD/DD

Artikelnummer 09 15 000 6204 Beschrijving Han D FEMALE CRIMP CONT..14-.3 Type sheet PDFPDF Identification Category Contacts Series Han D® Type of contact Crimp contact Version Gender Female Technical characteristics Conductor cross-section 0.14 ... 0.37 mm² Conductor cross-section AWG 26 ... AWG 22 Operating current ? 10 A Contact resistance ? 3 m? Stripping length 8 mm Material properties Material (contacts) Copper alloy Surface (contacts) Silver plated Net weight 0.73 g RoHS compliant with exemption Specifications and approvals Specifications IEC 61984 EN 60664-1

Declaration of Conformity


BAL-71097

Female chassis SCHUKO 16A/230V BLACK Screw 50x50 (Special: DE/NL standard)

Order number 71097 EAN/pcs 4024941209465 Product Group Domestic panel mounting socket outlet, straight, System F German standard Amperage 16A Poles 3p (2P+PE) Voltage 250V Frequency alternating current (AC) Protection IP54 Color code black RAL 9005 Connection Design head-Screw Terminal Max. conductor 2,5 mm²

Declaration of Conformity


HAR-09330162601

Insert Male 16E with screw contacts

Artikelnummer 09 33 016 2601 Beschrijving Han E MALE INSERT SCREW Type sheet PDFPDF Identification Category Inserts Series Han E® Termination method Screw termination Version Gender Male Size 16 B With wire protection Yes Number of contacts 16 PE contact Yes Technical characteristics Conductor cross-section 0.75 ... 2.5 mm² Electrical data acc. to IEC 61984 16 A 500 V 6 kV 3 Rated current 16 A Rated voltage 500 V Rated impulse voltage 6 kV Pollution degree 3 Rated voltage acc. to UL 600 V Rated voltage acc. to CSA 600 V Contact resistance ? 1 m? Limiting temperature -40 ... +125 °C Tightening torque 0.5 Nm Mating cycles ? 500 Material properties Material (insert) Polycarbonate Colour (insert) RAL 7032 (pebble grey) Net weight 85.8 g RoHS compliant with exemption Specifications and approvals Specifications IEC 61984 EN 60664-1 Approvals CSA-C22.2 No. 182.3 PVVA8.E318390 UL 1977 ECBT2.E235076 UL 2237 PVVA2.E318390 GL Yes

Declaration of Conformity

Related products

HAR-19300161521

Hood 16E/72DD Side Entry - M25 -Grey

Artikelnummer 19 30 016 1521 Beschrijving Han HOUSING 1 S-E M 25 SURF.M Type sheet PDFPDF Identification Category Hoods/Housings Series of hoods/housings Han® B Type of hood/housing Hoods Type Low construction Locking type Double locking lever Version Size 16 B Version Side entry Cable gland 1x M25 Field of application Standard hoods/housings for industrial connectors Technical characteristics Limiting temperature -40 ... +125 °C Degree of protection acc. to IEC 60529 IP65 Degree of protection acc. to UL 50 12 4 4X Material properties Material (hood/housing) Aluminium die-cast Surface (hood/housing) Powder-coated Colour (hood/housing) RAL 7037 (dust grey) Net weight 206.9 g RoHS compliant Specifications and approvals Approvals UL 1977 ECBT2.E235076 CSA-C22.2 No. 182.3 ECBT8.E235076 GL Yes

Declaration of Conformity


HAR-19300161421

Hood 16E/72DD Top Entry - M25 -Grey

Artikelnummer 19 30 016 1421 Beschrijving Han B Hood Top Entry LC 4 Pegs M25 Type sheet PDFPDF Identification Category Hoods/Housings Series of hoods/housings Han® B Type of hood/housing Hoods Type Low construction Locking type Double locking lever Version Size 16 B Version Top entry Cable gland 1x M25 Field of application Standard hoods/housings for industrial connectors Technical characteristics Limiting temperature -40 ... +125 °C Degree of protection acc. to IEC 60529 IP65 Degree of protection acc. to UL 50 12 4 4X Material properties Material (hood/housing) Aluminium die-cast Surface (hood/housing) Powder-coated Colour (hood/housing) RAL 7037 (dust grey) Net weight 143.6 g RoHS compliant Specifications and approvals Approvals UL 1977 ECBT2.E235076 CSA-C22.2 No. 182.3 ECBT8.E235076 GL Yes

Declaration of Conformity


HAR-09330162701

Insert Female 16E with screwcontacts

Han 16E-bu-s Part number 09 33 016 2701 Specification Han 16E-bu-s HARTING eCatalogue https://b2b.harting.com/09330162701 Identification Category Inserts Series Han E® Version Termination method Screw termination Gender Female Size 16 B With wire protection Yes Number of contacts 16 PE contact Yes Technical characteristics Conductor cross-section 0.75 ... 2.5 mm² Conductor cross-section AWG 18 ... AWG 14 Rated current 16 A Rated voltage 500 V Rated impulse voltage 6 kV Pollution degree 3 Rated voltage acc. to UL 600 V Rated voltage acc. to CSA 600 V Insulation resistance >1010 O Contact resistance =1 mO Limiting temperature -40 ... +125 °C Stripping length 7.5 mm Product data sheet 09 33 016 2701 Han 16E-bu-s Page 2 / 2 | Creation date 2019-10-01 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality, conformity with applicable laws and directives, as well as for the electrical safety in the particular application. HARTING Electric GmbH & Co. KG | Wilhelm-Harting-Straße 1 | 32339 Espelkamp | Germany Phone +49 5772 47-97100 | electric@HARTING.com | www.HARTING.com Technical characteristics Tightening torque 0.5 Nm Mating cycles =500 Material properties Material (insert) Polycarbonate Colour (insert) RAL 7032 (pebble grey) Material (contacts) Copper alloy Surface (contacts) Silver plated Material flammability class acc. to UL 94 V-0 RoHS compliant with exemption RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight ELV status compliant with exemption China RoHS 50 REACH Annex XVII substances No REACH ANNEX XIV substances No REACH SVHC substances Yes REACH SVHC substances Lead Specifications and approvals Specifications EN 60664-1 IEC 61984 Approvals DNV GL UL / CSA UL 1977 ECBT2.E235076 UL 2237 PVVA2.E318390 CSA-C22.2 No. 182.3 PVVA8.E318390 Commercial data Packaging size 1 Net weight 89 g Country of origin Germany European customs tariff number 85366990 eCl@ss 27440205 Contact insert for industrial connectors


Declaration of Conformity


HAR-09330162601

Insert Male 16E with screw contacts

Artikelnummer 09 33 016 2601 Beschrijving Han E MALE INSERT SCREW Type sheet PDFPDF Identification Category Inserts Series Han E® Termination method Screw termination Version Gender Male Size 16 B With wire protection Yes Number of contacts 16 PE contact Yes Technical characteristics Conductor cross-section 0.75 ... 2.5 mm² Electrical data acc. to IEC 61984 16 A 500 V 6 kV 3 Rated current 16 A Rated voltage 500 V Rated impulse voltage 6 kV Pollution degree 3 Rated voltage acc. to UL 600 V Rated voltage acc. to CSA 600 V Contact resistance ? 1 m? Limiting temperature -40 ... +125 °C Tightening torque 0.5 Nm Mating cycles ? 500 Material properties Material (insert) Polycarbonate Colour (insert) RAL 7032 (pebble grey) Net weight 85.8 g RoHS compliant with exemption Specifications and approvals Specifications IEC 61984 EN 60664-1 Approvals CSA-C22.2 No. 182.3 PVVA8.E318390 UL 1977 ECBT2.E235076 UL 2237 PVVA2.E318390 GL Yes

Declaration of Conformity
