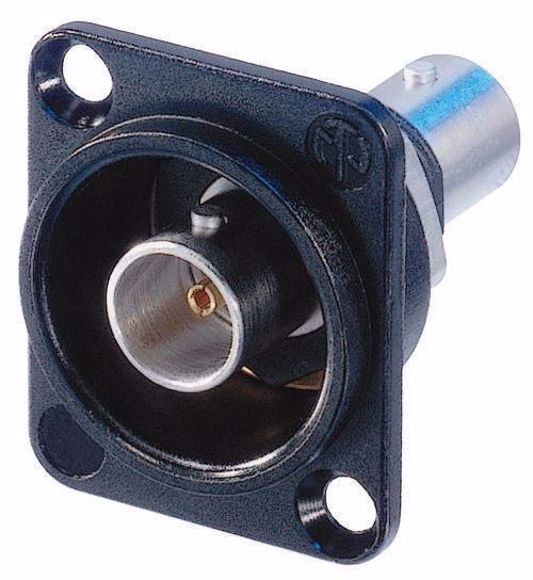

NEU-NBB75DFIB

Isolated BNC chassis connectors, feedthrough in black D-shape housing

Isolated BNC chassis connectors, feedthrough in black D-shape housing Neutrik's BNC chassis connectors offer a true 75 ? design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard). Features & Benefits •Gold plated cage type center contact •True 75 ? design meets the stringent HD requirements •Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential) •Standard D-shape housing - provides flush mounting and protection from demage •Color coding possible New cage type contact •Closed contact design - extremely robust •Gold plated cage type clip - best possible shielding and lowest contact resistance
Availability: In stock
Manufacturer: Neutrik
