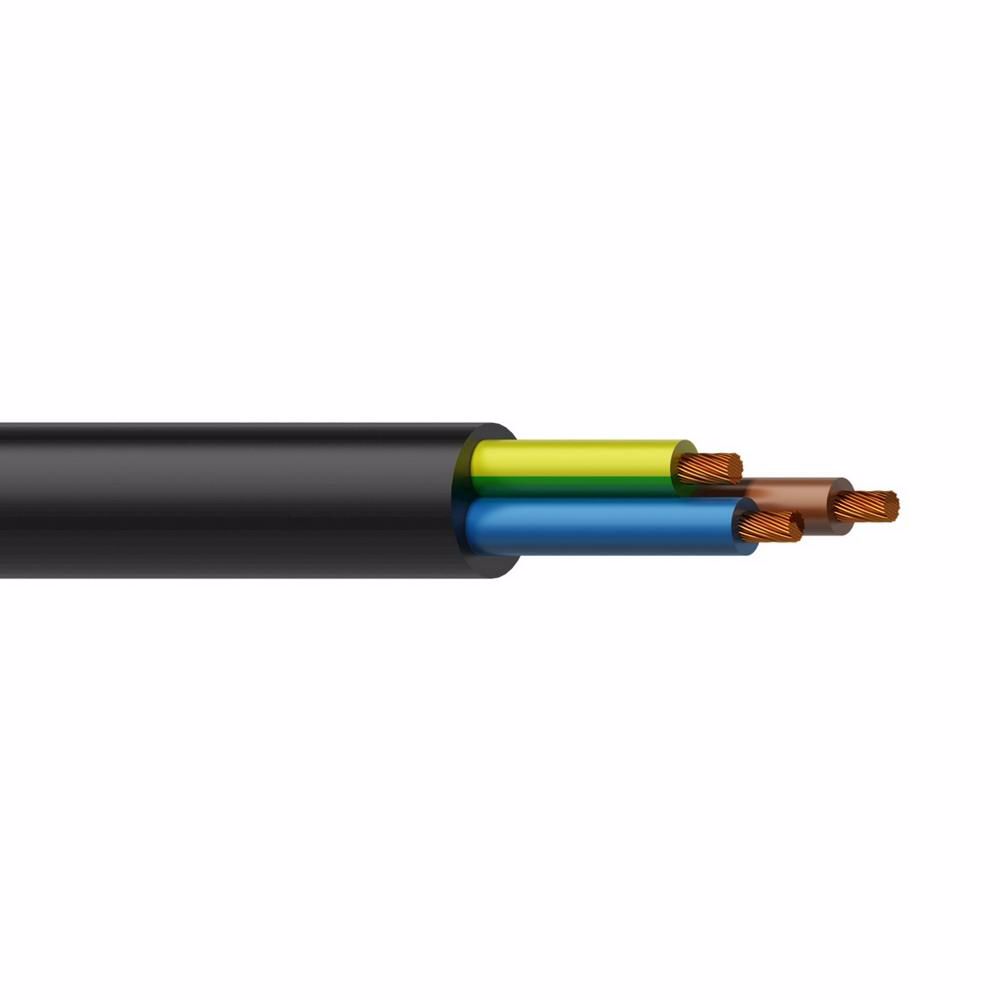

PWC-H05VVF-3g1.5mm²

Flexible pvc cable black 3g2,5mm²

H05VV-F is a round, lead free, PVC insulated, PVC sheathed connecting cable with circular and multi stranded copper conductors.
The cable is designed according to EN 50525-2-11.
The conductors have resistance according to EN 60228 class 5. The cores are cabled together and identified by colours according to HD 308.

DMX Binary 234 AES/EBU MKII; 2 x 0,34 mm²; PVC Ø 6,20 mm; black

Technical Data: - Properties: OFC oxygen free copper - Properties: Digital 110 Ω AES / EBU - Properties: Analog - Application area: ELA 100 V - Application area: Installation - Application area: Mobile outdoor / indoor - Application area: Stage / live - Application area: Studio / Broadcast - Application: DMX - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 6,2 mm - Number of Channels (AES/EBU, DMX): 1 - Inner conductor (AES/EBU, DMX): 2 - Inner conductor (AES/EBU, DMX): 0,34 mm² - Inner conductor Ø (AES/EBU, DMX): 0,66 mm - AWG (AES/EBU, DMX): 22 - Shielding: Copper spiral shielding + aluminum steamed fleece - Copper strands (AES/EBU, DMX): 19 - Copper strand Ø (AES/EBU, DMX): 0,15 mm - Conductor insulation material: Foam / Skin-PE - Conductor insulation Ø: 1,5 mm - Weight per 1 m: 50 g - UV-resistant: yes - Fire load per m: 0,17 kWh - Style variant: round - Shielding factor: 100 % - Packing: 100 m spool - Temperature min.: -25 °C - Temperature max.: 70 °C - Width: 6,2 mm - Height: 6,2 mm - Capac. cond./cond. per 1 m (AES/EBU, DMX): 63 pF - Capac. cond./shield. per 1 m (AES/EBU, DMX): 115 pF - Impedance: 110 Ω - Insulation resist. per 1 km: 1 GΩ - Insulation resist. per 1 km (AES/EBU, DMX): 1 GΩ - Conductor resistance per 1 km: 53 Ω - Shield. resistance per 1 km: 28 Ω

SPEAKER CABLE - 2 x 2.5mm²

This range of SYNTAX® SPEAKER cables has been developed to obtain maximum flexibility and excellent mechanical properties. The main characteristic is the extremely dense stranding of the conductors’ section, which results in high flexibility, increased conductivity and brilliance of sound. They feature large conductor size to minimize resistance to high power conduction. All the conductors are numbered and maintained properly clustered inside the outer PVC sheath thanks to the internal lined ridges, even under heavy usage and continuous rewinding. The cores are talc dusted to slide against one another, thus granting optimal handling. The external diameters is perfectly suitable for usage with the most commonly used power connectors. Finally, the arctic polymer PVC jacket allows good flexibility and handling in a wide range of temperatures.

Cable ties 368*4,8 black/100pc

Our range of cable ties includes: standard Polyamide 6.6 (PA 66) cable ties, heat-resistant cable ties, Polypropylene cable ties, Tefzel® cable ties, detectable cable ties, stainless steel cable ties, releasable cable ties, push mount cable ties, marker cable ties, chassis cable ties and airconditioning cable ties.
