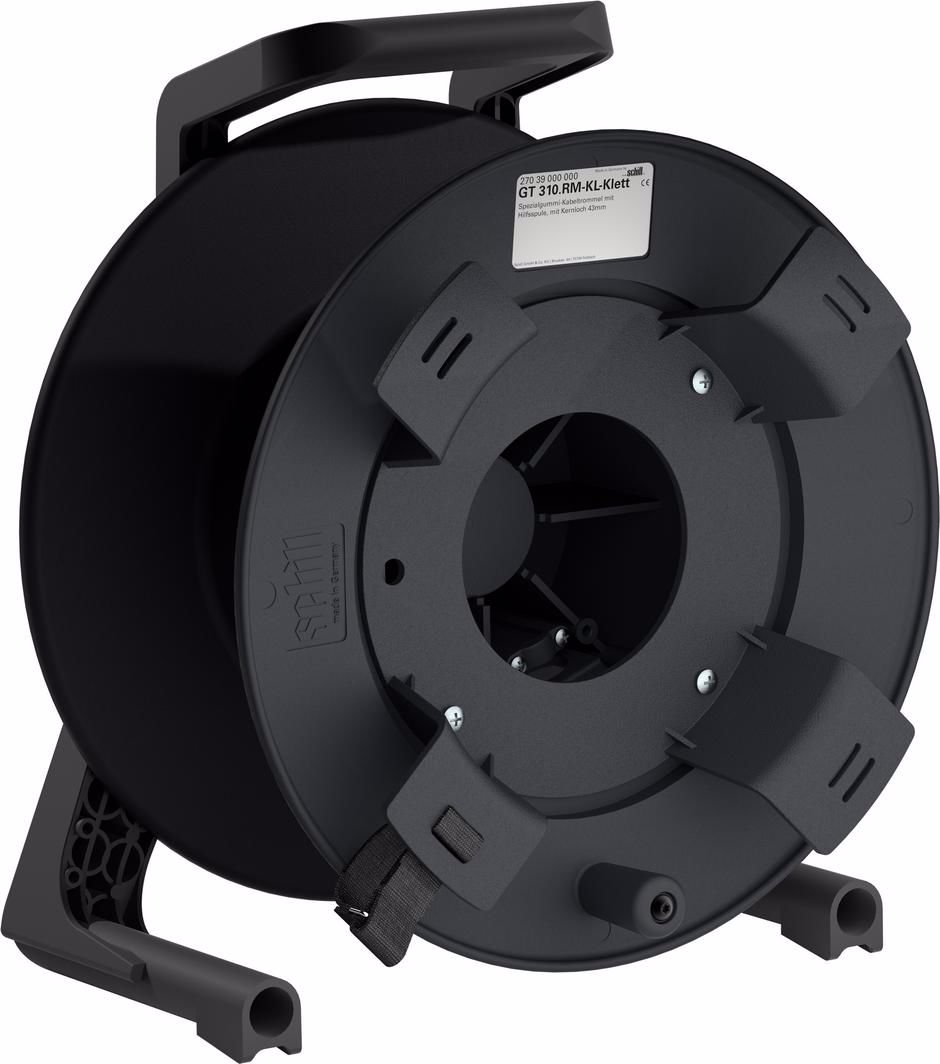

SCH-GT310-RM

COAX Cable 6G-SDI - BLACK

RG-6/U Type, 18 AWG solid .040" bare copper conductor, gas-injected foam HDPE insulation, Duofoil® + tinned copper braid shield (95% coverage), PVC jacket.

Declaration of Conformity

RearTWIST HD BNC Cable Connectors for Belden 1694A

The rearTWIST HD BNC cable connector offers a true 75 ? design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: Belden 1694A (ANH), Belden 4694R, Bryant BD SD11, Canare L-4.5CHD, Clark Wire CD7506-0, CommScope 5765, Gepco VSD2001, Suhner S05163-02, Suhner S05133-07, Percon VK77 Crimp size: Pin: 1.6 mm (square) Shield: 7.36 mm (hex) Features & Benefits •“rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507) •Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front. •True 75 ? design meets the stringent HDTV / DVD requirements •Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles! •Snug-fit center pin insert provides tactile feedback •Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies •Excellent cable protection and retention •Precise Swiss machined brass parts for outstanding durability •Accessories include color coded boots in 10 standard colors, crimp tool and dies

Cable Female PowerCON, Blue, 16A

Lockable cable connector, power-in, screw terminals, blue The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live! Features & Benefits Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating Fast and easy twist lock latching system Extremely robust and reliable Ergonomic design Unique Neutrik chuck type strain relief Improved kink protection by two-component bushing UL, cUL recognized components VDE certified SEV approved Branded with unique hologram - guarantees genuine and authentic Neutrik product

Cable Male 3P, Nickel body, silver contacts

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features & Benefits
Male connector with improved locking recess without "window", more stringent housing increases durability
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Boot with polyurethane gland gives high protection to cable bending stresses
Colored rings and boots available for coding or identification
Sleek and ergonomic design - valuable and handy
Rugged zinc diecast shell, longlasting and dependable
Internal thread on shell is well protected against any damage
Branded with unique hologram - guarantees genuine and authentic Neutrik product
