SOM-200-0001

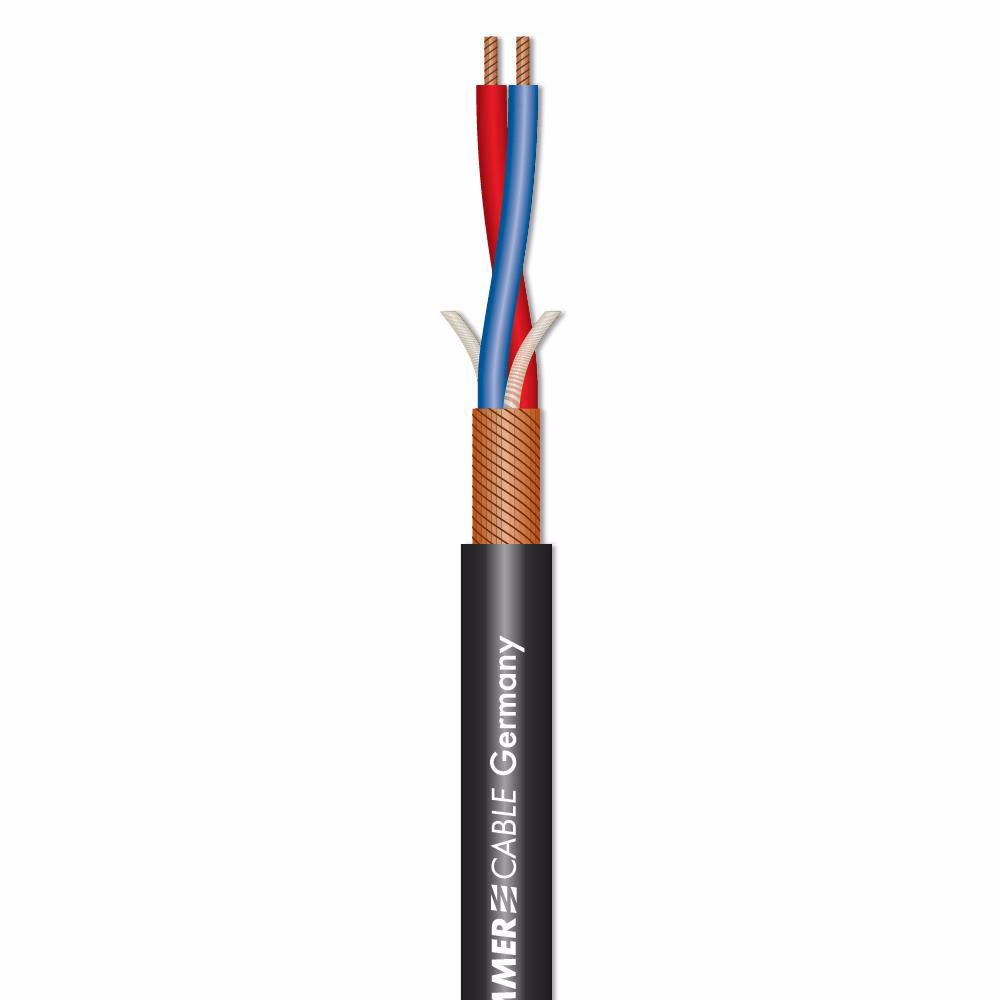

Microphone Cable Stage 22 Highflex; 2 x 0,22 mm²; PVC Ø 6,40 mm; black

Technical Data: - Properties: Analog - Properties: OFC oxygen free copper - Application area: Stage / live - Application area: Mobile outdoor / indoor - Application area: Installation - Application: Microphone Cable - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 6,4 mm - Number of Channels (audio): 1 - Inner conductor (audio): 2 - Inner conductor (audio): 0,22 mm² - Inner conductor Ø (audio): 0,53 mm - AWG (audio): 24 - Shielding: Copper spiral shielding with 0.10 mm indiv. strands - Copper strands (audio): 28 - Copper strand Ø (audio): 0,10 mm - Weight per 1 m: 44 g - UV-resistant: yes - Fire load per m: 0,22 kWh - Style variant: round - Shielding factor: 99 % - Packing: 100 m spool - Packing: 500 m spool - Temperature min.: -20 °C - Temperature max.: 70 °C - Width: 6,4 mm - Height: 6,4 mm - Capac. cond./cond. per 1 m (audio): 68 pF - Capac. cond./shield. per 1 m (audio): 130 pF - Impedance: 100 Ω - Insulation resist. per 1 km: 1 GΩ - Insulation resist. per 1 km (audio): 1 GΩ - Conductor resistance per 1 km: 87 Ω - Shield. resistance per 1 km: 30 Ω
Availability: In stock
Manufacturer: Sommer
