SOM-200-0371

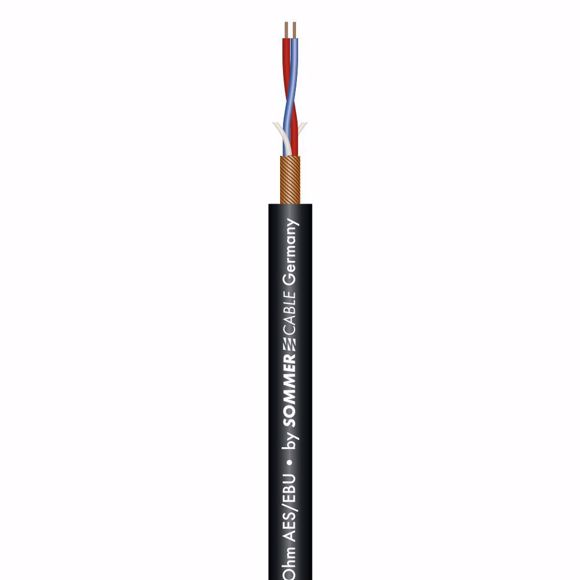

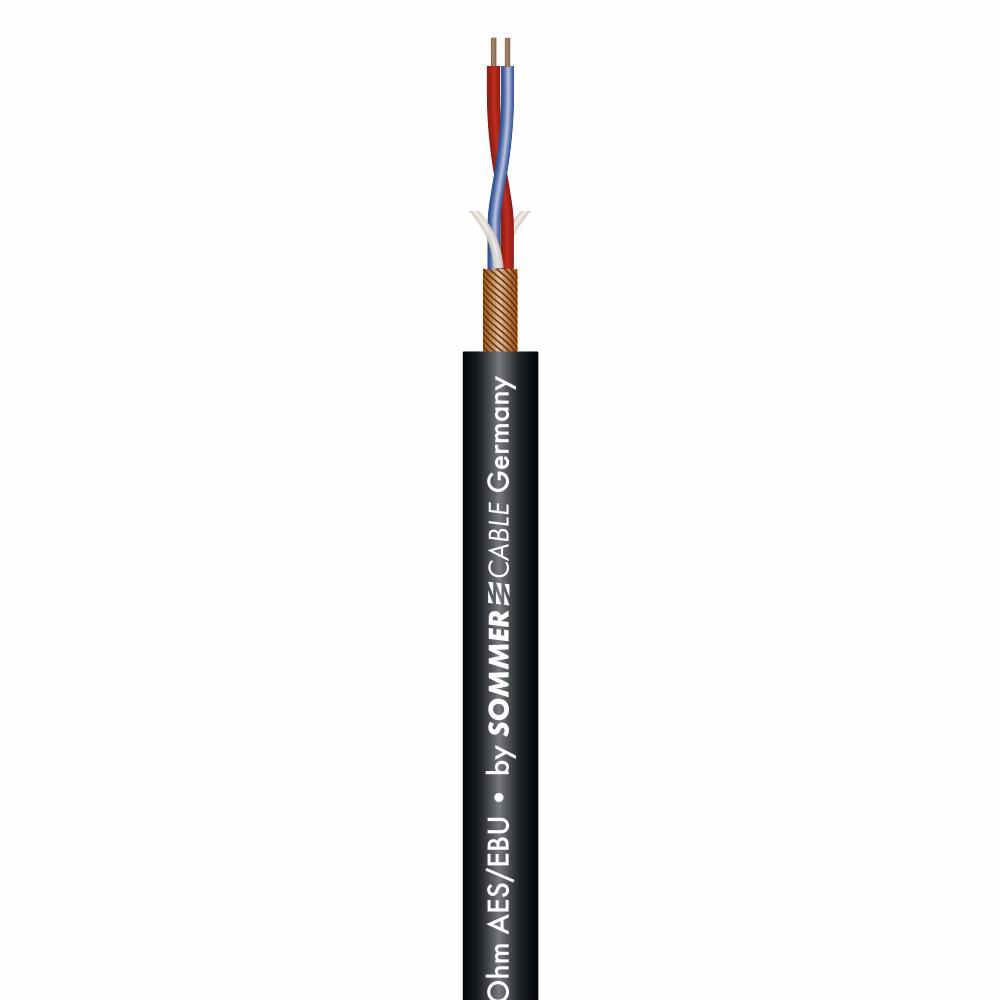

Microphone Cable SC-MICRO-STAGE; 2 x 0,14 mm²; PVC Ø 5,80 mm; black

Technical Data: - Properties: Digital 110 Ω AES / EBU - Properties: OFC oxygen free copper - Properties: Analog - Application area: Installation - Application area: Stage / live - Application area: Mobile outdoor / indoor - Application: Microphone Cable - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 5,8 mm - Number of Channels (audio): 1 - Inner conductor (audio): 2 - Inner conductor (audio): 0,14 mm² - Inner conductor Ø (audio): 0,42 mm - AWG (audio): 26 - Shielding: Copper spiral shielding with 0.10 mm indiv. strands - Copper strands (audio): 18 - Copper strand Ø (audio): 0,1 mm - Conductor insulation material: Foam / Skin-PE - Conductor insulation Ø: 1,2 mm - Weight per 1 m: 50 g - UV-resistant: yes - Fire load per m: 0,22 kWh - Style variant: round - Shielding factor: 95 % - Packing: 500 m spool - Packing: 100 m spool - Temperature min.: -20 °C - Temperature max.: 70 °C - Width: 5,8 mm - Height: 5,8 mm - Capac. cond./cond. per 1 m (audio): 48 pF - Capac. cond./shield. per 1 m (audio): 120 pF - Impedance: 95 Ω - Surge impedance (audio): 110 Ω - Insulation resist. per 1 km: 1 GΩ - Insulation resist. per 1 km (audio): 1 GΩ - Conductor resistance per 1 km: 130 Ω - Shield. resistance per 1 km: 30 Ω
Availability: Out of stock (On request)
Manufacturer: Sommer
