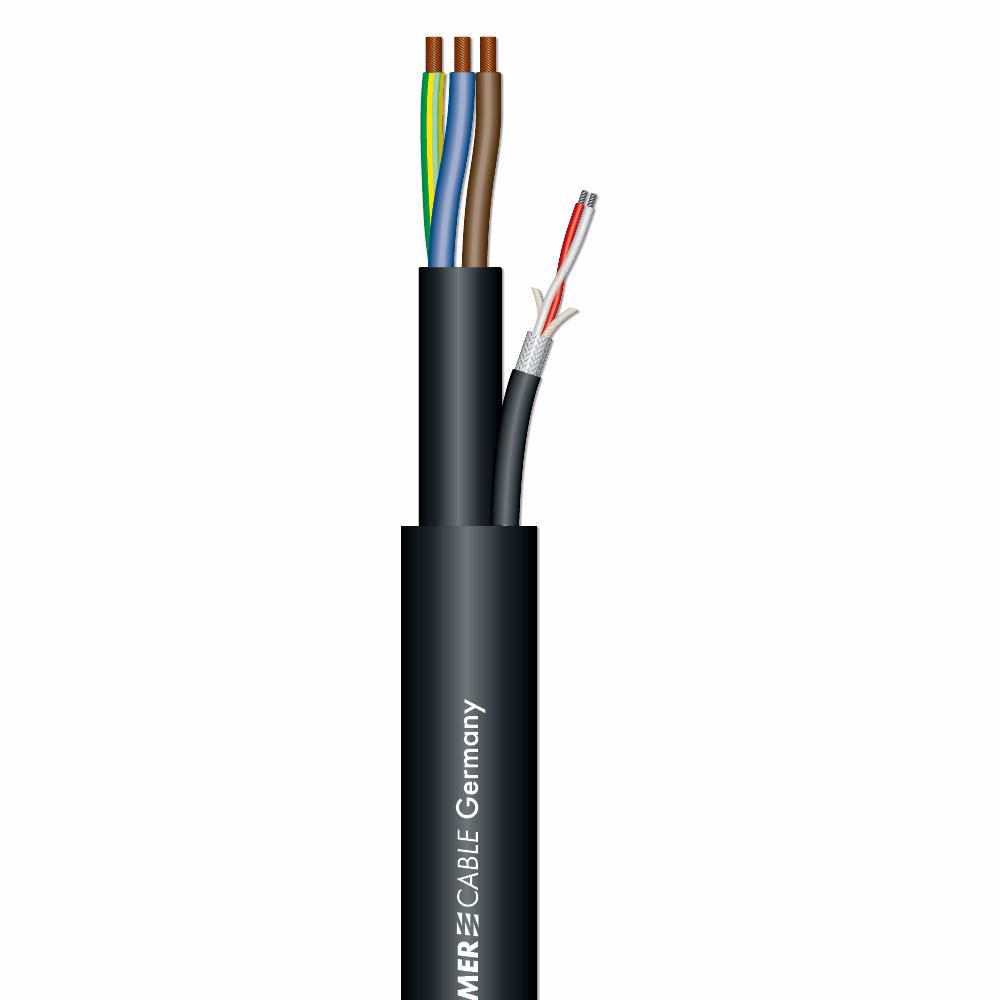

SC-Monolith 2; power: 3 x 1,50 mm²; DMX: 2 x 0,14 mm²; PVC Ø 12,30 mm; black

Technical Data: - Name: SC-Monolith 2 - Properties: Analog - Properties: OFC oxygen free copper - Properties: Digital 110 Ω AES / EBU - Application area: Stage / live - Application area: Installation - Application area: Studio / Broadcast - Application area: Mobile outdoor / indoor - Application: DMX & Power - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 12,3 mm - Jacket Ø (power): 6,2 mm - Jacket Ø (AES/EBU, DMX): 3 mm - Number of Channels (power): 1 - Number of Channels (AES/EBU, DMX): 2 - Inner conductor (power): 3 - Inner conductor (AES/EBU, DMX): 2 - Inner conductor (power): 1,5 mm² - Inner conductor (AES/EBU, DMX): 0,14 mm² - Inner conductor Ø (power): 1,38 mm - Inner conductor Ø (AES/EBU, DMX): 0,42 mm - AWG (power): 15 - AWG (AES/EBU, DMX): 25 - Shielding (AES/EBU, DMX): Copper spiral, tin-plated - Copper strands (power): 28 - Copper strands (AES/EBU, DMX): 36 - Copper strand Ø (power): 0,25 mm - Copper strand Ø (AES/EBU, DMX): 0,07 mm - Wire insulation material (power): PVC - Conductor insulation Ø (power): 2,3 mm - Conductor insulation Ø (AES/EBU, DMX): 1,15 mm - Weight per 1 m: 200 g - UV-resistant: yes - Fire load per m: 0,86 kWh - Style variant: round - Shielding factor: 90 % - Packing: bulk stock - Temperature min.: -30 °C - Temperature max.: 70 °C - Width: 12,3 mm - Height: 12,3 mm - Capac. cond./cond. per 1 m (AES/EBU, DMX): 52 pF - Capac. cond./shield. per 1 m (AES/EBU, DMX): 89 pF - Surge impedance (AES/EBU, DMX): 110 Ω - Insulation resist. per 1 km (AES/EBU, DMX): 0,1 GΩ - Conductor resistance per 1 km (power): 80 Ω

Male cable SCHUKO 16A/230V BLACK

Order number 7372
EAN/pcs 4024941852401
Product Group Domestic plug with MULTI-GRIP cable gland
Amperage 16A
Poles 3p (2P+PE)
Voltage 250V
Frequency alternating current (AC)
Protection IP44
Color code black RAL 9005
Connection Design Screw Terminal
Max. conductor 4,0 mm²
Belgian/French standaard ! PEN EARTH !!

Declaration of Conformity

Hook and Loop Cable Tie 300 x 20 mm black

Adam Hall Accessories VR 2030 BLK
Hook and Loop Cable Tie 300 x 20 mm black

Cable Female 3P, Nickel body, silver contacts

3 pole female cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Unique cage design of female contact for low contact resistance and high integrity Female contact incorporates a solder barrier to prevent solder running into the contact mating area Female connector with improved solid metal latch which is larger and easier to handle Additional ground spring contacts for better shell ground continuity Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Colored rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Rugged zinc diecast shell, longlasting and dependable Internal thread on shell is well protected against any damage Branded with unique hologram - guarantees genuine and authentic Neutrik product
