SOM-600-0611-05

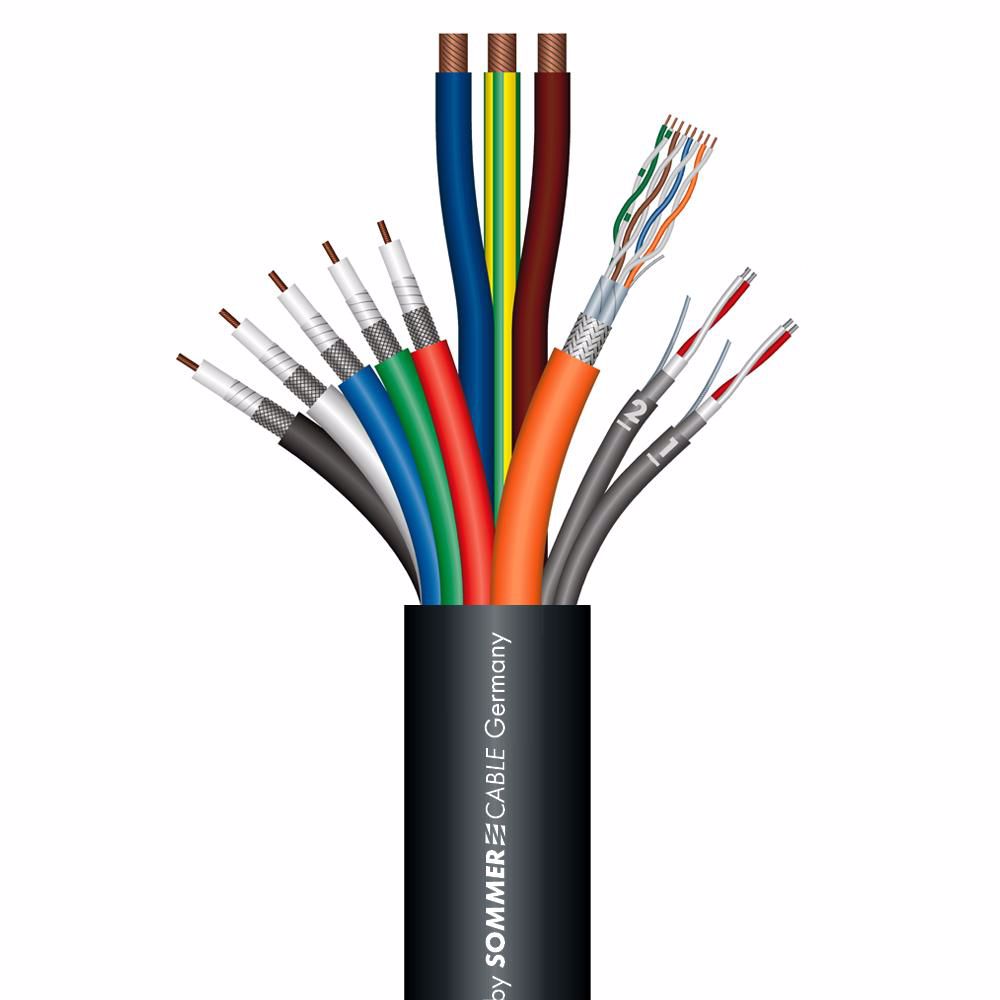

Transit MC5231 HD-0.8; video: 1 x 0,80; audio: 2 x 2 x 0,22 mm²; power: 3 x 2,50 mm²; 1 x

Technical Data: - Properties: SDI - Properties: Digital 75 Ω - Properties: FRNC flame retardant - Properties: Halogen-free / LSZH - Properties: Analog - Properties: HDTV - Application area: ELA 100 V - Application area: Mobile outdoor / indoor - Application area: Studio / Broadcast - Application area: Installation - Application: Multicoax & Audio - Colour: black - Colour detailed: black - Construction (network): SFTP 4x2x0,57mm - Jacket material: FRNC - Jacket Ø: 24,8 mm - Jacket Ø (video): 6 mm - Number of Channels (audio): 2 - Number of Channels (video): 5 - Number of Channels (power): 1 - Number of Channels (network): 1 - Inner conductor (audio): 2 - Inner conductor (video): 1 - Inner conductor (power): 3 - Inner conductor (network): 8 - Inner conductor (audio): 0,22 mm² - Inner conductor (video): 0,5 mm² - Inner conductor (power): 2,5 mm² - Inner conductor Ø (audio): 0,53 mm - Inner conductor Ø (video): 0,8 mm - Inner conductor Ø (power): 1,78 mm - Inner conductor Ø (network): 0,57 mm - AWG (audio): 24 - AWG (video): 20 - AWG (network): 23 - Shielding (video): Copper braiding + AL / PT foil - Shielding (network): Copper braiding + AL / PT foil - Conductor insulation material: Foam / Skin-PE - Conductor insulation Ø: 3,7 mm - Weight per 1 m: 678 g - UV-resistant: yes - Fire load per m: 1,58 kWh - Style variant: round - Shielding factor: 100 % - Packing: bulk stock - CAT-Type: CAT.6 - Temperature min.: -20 °C - Temperature max.: 75 °C - Width: 24,8 mm - Height: 24,8 mm - Capac. cond./cond. per 1 m (audio): 65 pF - Capac. cond./shield. per 1 m (audio): 120 pF - Capacity wire/electic screen at 1m (video): 55 pF - Surge impedance (audio): 100 Ω
