SYN-AES4P

AES/EBU 4 PAIRS

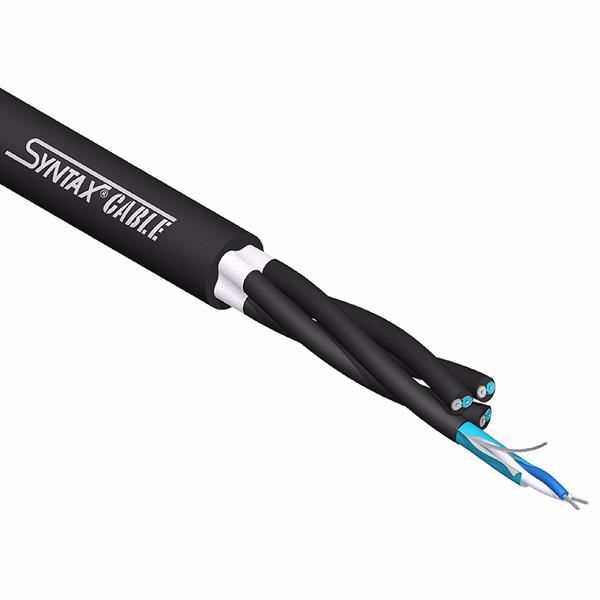

The SYNTAX DIGITAL MULTIPAIR cables are developed for those applications (either in fixed installations or outdoors) where the management of digital equipment are a very important part of the whole system. The cables have been designed in accordance with the standard AES/EBU specifications, 110 ohm impedance and a very low capacitance thanks to the use of a special gas injected foam for the conductors’ insulation. The particular internal arrangement solves the problems of twisting and knotting of the cores while keeping the right flexibility. The pairs are twisted and individually shielded by aluminium foil with drain wire. The external jacket of each pair is individually numbered. The overall external jacket is made with a high tech PVC polymer, very flexible and impact absorbing, slipping over rough surfaces and granting suppleness even with low temperatures
Availability: In stock
Manufacturer: Syntax
Customers who bought this item also bought

NEU-NC3MXX

Cable Male 3P, Nickel body, silver contacts

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features & Benefits
Male connector with improved locking recess without "window", more stringent housing increases durability
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Boot with polyurethane gland gives high protection to cable bending stresses
Colored rings and boots available for coding or identification
Sleek and ergonomic design - valuable and handy
Rugged zinc diecast shell, longlasting and dependable
Internal thread on shell is well protected against any damage
Branded with unique hologram - guarantees genuine and authentic Neutrik product

Declaration of Conformity

NEU-NC3FD-LX

Panel 3 pole Female, Nickel housing, silver contacts, D-size

3 pole female receptacle, solder cups, Nickel housing, silver contacts The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector. Features & Benefits •All metal housing offers best overall RF protection and electromagnetic shielding •Duplex ground contact for excellent contact integrity between chassis and cable connector •Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact •Female contact incorporates a solder barrier to prevent solder running into the contact mating area •Larger solder contacts for easier termination •Optional connection to easily join pin1 to chassis ground •D-style housing provides installation compatibility with industry standard D mounting dimensions

NEU-MFD

M3 mounting frame

The fixing plate with M3 thread offers efficient and ease mounting of all D-sized chassis connectors by M3 screws.

NEU-DBA-BL

Dummy-plate to cover D-shape cutouts

Dummy-plate to cover D-shape cutouts
