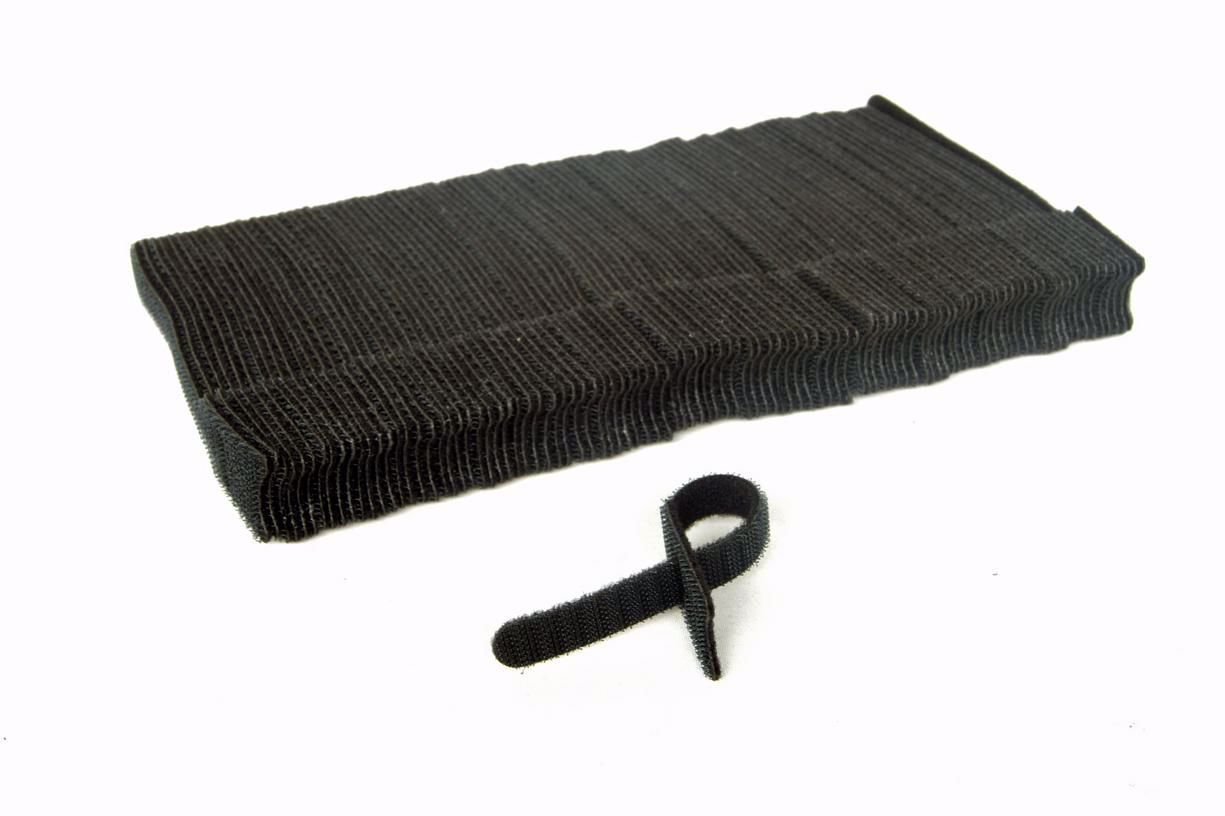

VEL-25/150

CODING RING XX-SERIE

Colored coding rings. Color ring can be changed without unsoldering insert

Titanex H-07RN-F 3G2,5mm²/m - Outside diameter: 14mm

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals. For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fixed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc.

TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection.



The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc.

Microphone Cable SC-Primus; 2 x 0,50 mm²; FRNC Ø 6,50 mm; black

Technical Data: - Properties: Analog - Properties: OFC oxygen free copper - Application area: Stage / live - Application area: Mobile outdoor / indoor - Application area: Studio / Broadcast - Application area: Installation - Application area: ELA 100 V - Application: Microphone Cable - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: FRNC - Jacket Ø: 6,5 mm - Number of Channels (audio): 1 - Inner conductor (audio): 2 - Inner conductor (audio): 0,50 mm² - Inner conductor Ø (audio): 0,80 mm - AWG (audio): 20 - Shielding: Copper spiral sleeve tin-plated + metalic fleece - Copper strands (audio): 28 - Copper strand Ø (audio): 0,15 mm - Conductor insulation material: PE - Conductor insulation Ø: 1,65 mm - Weight per 1 m: 53 g - UV-resistant: yes - Fire load per m: 0,23 kWh - Style variant: round - Shielding factor: 100 % - Packing: 100 m spool - Packing: 500 m spool - Temperature min.: -25 °C - Temperature max.: 70 °C - Width: 6,5 mm - Height: 6,5 mm - Capac. cond./cond. per 1 m (audio): 80 pF - Capac. cond./shield. per 1 m (audio): 145 pF - Insulation resist. per 1 km: 1 GΩ - Insulation resist. per 1 km (audio): 1 GΩ - Conductor resistance per 1 km: 37 Ω - Shield. resistance per 1 km: 27 Ω

DMX Binary 434 DMX512; 4 x 0,34 mm²; PE Ø 7,00 mm; black

Technical Data: - Properties: In-ground / burial - Properties: OFC oxygen free copper - Properties: Analog - Properties: Digital 110 Ω AES / EBU - Application area: ELA 100 V - Application area: Stage / live - Application area: Studio / Broadcast - Application area: Installation - Application area: Mobile outdoor / indoor - Application: DMX - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PE - Jacket Ø: 7 mm - Number of Channels (AES/EBU, DMX): 1 - Inner conductor (AES/EBU, DMX): 4 - Inner conductor (AES/EBU, DMX): 0,34 mm² - Inner conductor Ø (AES/EBU, DMX): 0,66 mm - AWG (AES/EBU, DMX): 22 - Shielding: Copper-cross mesh, tined + AL / PT foil - Copper strands (AES/EBU, DMX): 7 - Copper strand Ø (AES/EBU, DMX): 0,25 mm - Conductor insulation material: PE - Conductor insulation Ø: 1,7 mm - Weight per 1 m: 65 g - UV-resistant: yes - Fire load per m: 0,22 kWh - Style variant: round - Shielding factor: 100 % - Packing: 100 m spool - Temperature min.: -25 °C - Temperature max.: 70 °C - Width: 7 mm - Height: 7 mm - Capac. cond./cond. per 1 m (AES/EBU, DMX): 58 pF - Capac. cond./shield. per 1 m (AES/EBU, DMX): 100 pF - Impedance: 110 Ω - Insulation resist. per 1 km: 5 GΩ - Insulation resist. per 1 km (AES/EBU, DMX): 5 GΩ - Conductor resistance per 1 km: 53 Ω - Shield. resistance per 1 km: 15 Ω
