SOM-200-0151

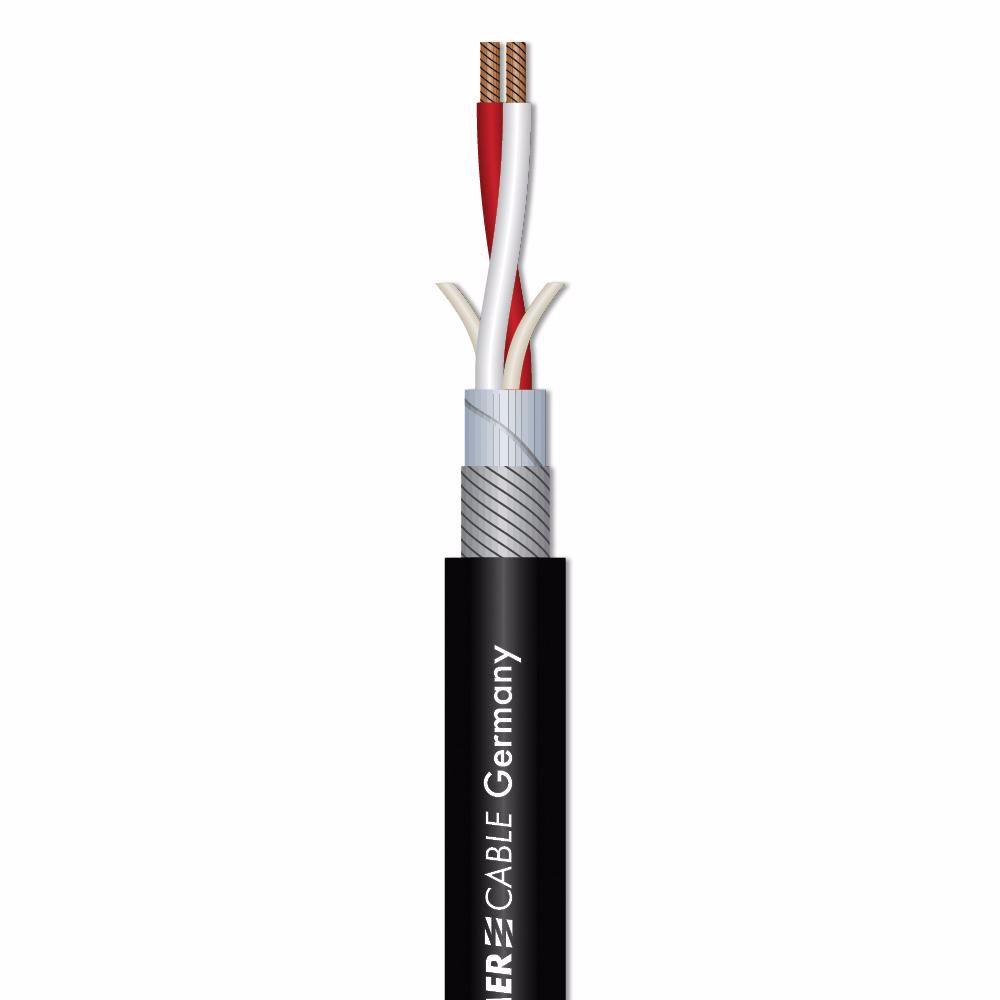

Microphone Cable SC-Primus; 2 x 0,50 mm²; PVC Ø 6,50 mm; black

Technical Data: - Properties: OFC oxygen free copper - Properties: Analog - Application area: Stage / live - Application area: Mobile outdoor / indoor - Application area: ELA 100 V - Application area: Installation - Application area: Studio / Broadcast - Application: Microphone Cable - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 6,5 mm - Number of Channels (audio): 1 - Inner conductor (audio): 2 - Inner conductor (audio): 0,50 mm² - Inner conductor Ø (audio): 0,80 mm - AWG (audio): 20 - Shielding: Copper spiral sleeve tin-plated + metalic fleece - Copper strands (audio): 28 - Copper strand Ø (audio): 0,15 mm - Conductor insulation material: PE - Conductor insulation Ø: 1,65 mm - Weight per 1 m: 53 g - UV-resistant: yes - Fire load per m: 0,23 kWh - Style variant: round - Shielding factor: 100 % - Packing: 500 m spool - Packing: 100 m spool - Temperature min.: -25 °C - Temperature max.: 70 °C - Width: 6,5 mm - Height: 6,5 mm - Capac. cond./cond. per 1 m (audio): 80 pF - Capac. cond./shield. per 1 m (audio): 145 pF - Insulation resist. per 1 km: 1 GΩ - Insulation resist. per 1 km (audio): 1 GΩ - Conductor resistance per 1 km: 37 Ω - Shield. resistance per 1 km: 27 Ω
Availability: Out of stock (On request)
Manufacturer: Sommer
