HAR-19307160428

Type: MULTIFLEX-SOFT 18 x 2,5 mm2, black
Nominal voltage: 300/500 V
Conductor: finely wired acc. to VDE 0295
Copper construction: 50 x 0,25 mm
Core insulation: PVC-mixture – shorehardness 90+/- 3
Laying of cores: Centre: PVC filler, 1. lay = 6 cores,
2. lay = 12 cores
Core colours: 17 x black with white numbers+1 green-yellow
Jacket: Soft PVC-mixture, black (RAL 9005)
Shorehardness 65 +/- 3
Presure extrusion, with talc, printing: optional
Outside diameter: approx. 19,4 ± 0,40 mm
Test voltage > 3 kV – at 50 Hz eff. for 1 minute
Insulation resistance: min. 20 MOhm x km at 20°C
Conductor resistance: max. 7,98 Ohm/km at 20°C
Operating voltage: max. 500 V
Temperature rating: static: -30 up to +80 °C
operating: - 5 up to +70 °C
This cable is flame retardant acc. DIN VDE 0482 part 265-2-1

SKINTOP ST-M 40x1,5 RAL 9005 BK

SKINTOP® ST-M, increased oil-resistant plastic cable gland with variable clamping ranges, permanent vibration protection, for offshore platforms

Article designation / size: M 40 x 1,5; Clamping range ØF mm: 16 - 28; SW wrench size mm: 46; Overall length C mm: 52.0; Thread length D mm: 10; Pieces / PU: 10; Cable gland system: Single entry system; Thread type: Metric; Product Group: Cable screw gland; Material quality: Polyamide; Colour: Black; Size: 40x1,5; Clamping range min.: 19; Clamping range ma.: 28; Temperature range max.: 100; Temperature range min.: -40; Degree of protection (IP): IP 68 - 5 bar; Approbation: CE / CULUS / VDE / cRUus / GGVS / DNV

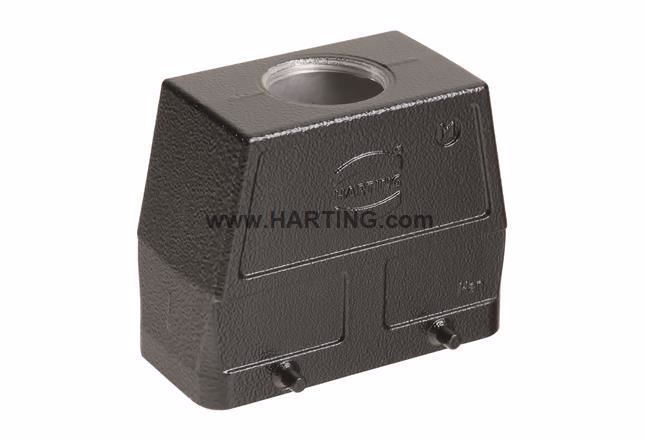

Han 16E-bu-s Part number 09 33 016 2701 Specification Han 16E-bu-s HARTING eCatalogue https://b2b.harting.com/09330162701 Identification Category Inserts Series Han E® Version Termination method Screw termination Gender Female Size 16 B With wire protection Yes Number of contacts 16 PE contact Yes Technical characteristics Conductor cross-section 0.75 ... 2.5 mm² Conductor cross-section AWG 18 ... AWG 14 Rated current 16 A Rated voltage 500 V Rated impulse voltage 6 kV Pollution degree 3 Rated voltage acc. to UL 600 V Rated voltage acc. to CSA 600 V Insulation resistance >1010 O Contact resistance =1 mO Limiting temperature -40 ... +125 °C Stripping length 7.5 mm Product data sheet 09 33 016 2701 Han 16E-bu-s Page 2 / 2 | Creation date 2019-10-01 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality, conformity with applicable laws and directives, as well as for the electrical safety in the particular application. HARTING Electric GmbH & Co. KG | Wilhelm-Harting-Straße 1 | 32339 Espelkamp | Germany Phone +49 5772 47-97100 | electric@HARTING.com | www.HARTING.com Technical characteristics Tightening torque 0.5 Nm Mating cycles =500 Material properties Material (insert) Polycarbonate Colour (insert) RAL 7032 (pebble grey) Material (contacts) Copper alloy Surface (contacts) Silver plated Material flammability class acc. to UL 94 V-0 RoHS compliant with exemption RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight ELV status compliant with exemption China RoHS 50 REACH Annex XVII substances No REACH ANNEX XIV substances No REACH SVHC substances Yes REACH SVHC substances Lead Specifications and approvals Specifications EN 60664-1 IEC 61984 Approvals DNV GL UL / CSA UL 1977 ECBT2.E235076 UL 2237 PVVA2.E318390 CSA-C22.2 No. 182.3 PVVA8.E318390 Commercial data Packaging size 1 Net weight 89 g Country of origin Germany European customs tariff number 85366990 eCl@ss 27440205 Contact insert for industrial connectors
